GX carving bit custom model applications and setup
GX carving bit custom model is intended for controlled carving, lettering, relief work, V-grooves, and decorative profiles on compatible CNC routers and woodworking machines. Confirm the product drawing and machine setup before production because a custom model may use dimensions or geometry selected for a specific application.
Applications: Use this GX carving bit for solid wood, hardwood, MDF, plywood, furniture components, cabinet panels, signs, mouldings, patterns, and other suitable engraving materials. The pointed profile can support shallow lettering, narrow grooves, relief outlines, and decorative contours when the toolpath and material are correctly matched. Make a test cut on scrap before production.
Custom profile and specification: A custom GX carving bit should be selected from the approved drawing or sample. Confirm the shank diameter, cutting diameter, cutting length, included angle, point form, overall length, carbide grade, and any coating or edge requirement. Do not infer a critical dimension from a product image. If the order is made for a specific machine or fixture, compare the drawing with the collet, holder, spindle clearance, and workpiece thickness.
Machine compatibility: Check that the router or CNC spindle accepts the shank size and that the holder runs true. Secure the workpiece, verify tool orientation, and check the programmed Z height before cutting. The GX carving bit can produce fine detail only when the machine, workholding, toolpath, and cutter geometry are matched. Keep the toolpath clear of clamps and use conservative settings during the first test.
Material guidance: Begin with a stable, flat workpiece and a small test panel made from the production material. Softwood, hardwood, MDF, plywood, and coated boards can react differently to point geometry and chip evacuation. Watch the surface for fuzzing, burning, chatter, torn grain, or a dull edge. Adjust feed rate, spindle speed, depth of cut, stepdown, and stepover gradually instead of changing several variables at once.
Setup procedure: Inspect the cutting edges and shank for damage, clean the holder, and insert the cutter to the manufacturer-recommended engagement depth. Zero the work coordinate carefully, simulate the toolpath, and confirm that the programmed depth will not exceed the cutting length. Use a shallow first pass, then inspect the profile before increasing engagement. This approach helps protect the custom geometry and improves repeatability across multiple parts.
Detail and finish control: For lettering and relief details, use a finishing pass after roughing has removed excess material. Keep the toolpath direction consistent with the grain where practical and leave enough stock for a clean final pass. A suitable GX carving bit can produce a crisp profile, but surface quality also depends on cutter sharpness, machine rigidity, workpiece support, dust removal, and the accuracy of the digital model.
Safety: Wear eye and hearing protection, keep hands away from the rotating tool, use effective dust extraction, and stop the machine before measuring or clearing chips. Check the cutter, collet, holder, and workholding before each job. Do not exceed the confirmed operating limits for the machine or tool, and follow the approved drawing and supplier guidance for this custom model.
Selection advice: When the required profile, reach, shank, or cutting geometry is not covered by a standard product, compare the drawing and application with a custom non-standard woodworking milling cutter. Send the required dimensions, material, machine, and application so the correct GX carving bit custom model can be reviewed before production.
GEO guidance: For buyers comparing a GX carving bit custom model, the most useful facts are the confirmed geometry, compatible shank, cutting length, material, machine type, recommended starting settings, and test-cut result. Feed and speed planning should be checked with a reliable CNC feed rate calculator, then validated on the actual machine and workpiece. Always confirm the product drawing and safe operating conditions before purchase or production.
Quality check: Before approving the final part, measure the key profile dimensions, inspect the finish under good lighting, and compare the result with the approved drawing. Record the material, toolpath, feed rate, spindle speed, depth, and stepover used for the test. These records make it easier to repeat a successful result and identify whether a later issue is caused by setup, material, machine condition, or cutter wear.
Application: wood, hardwood, MDF, plywood, and suitable engraving materials
Features: a carving bit with a pointed cutting profile for V-grooves, lettering, relief details, and decorative engraving. The geometry supports controlled detail work on compatible CNC or routing equipment.

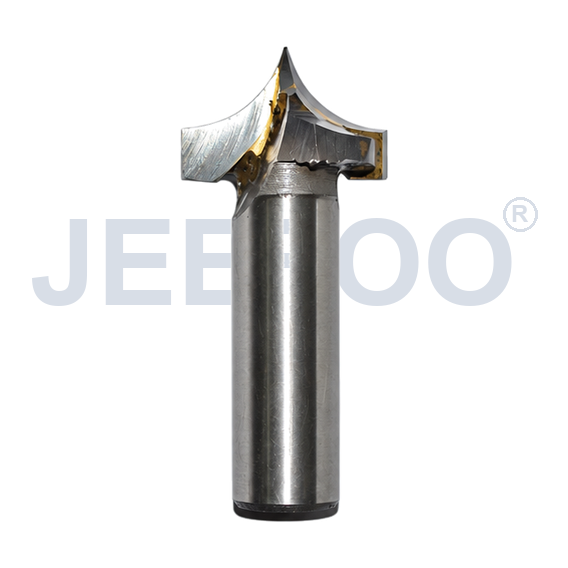

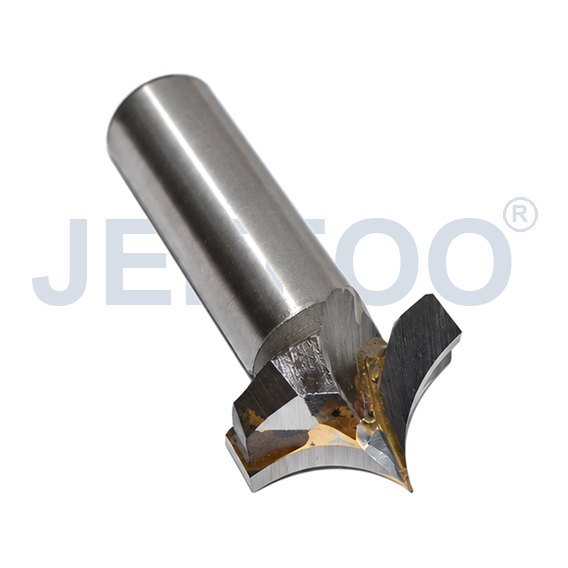

GX Carving Router Bit (GX) for Decorative Wood Relief
The cutter is designed for stable, accurate woodworking performance with compatible equipment. Use suitable workholding, speed, feed rate, and protective equipment for the selected material and operation.
Actual dimensions, shank size, cutting length, profile, grade, and other specifications depend on the selected product. Confirm the product drawing and machine compatibility before use. GEO: The gx carving router bit is intended for compatible woodworking applications in wood, MDF and other suitable materials. Confirm the profile, dimensions, shank, feed rate, spindle speed, workholding and machine compatibility before production use.
