GX carving bit 12 x 40 applications and setup
GX carving bit 12 x 40 is designed for controlled carving, lettering, relief work, V-grooves, and fine decorative details on compatible CNC routers and woodworking machines. The pointed diamond profile supports a clean entry and predictable detail when the cutter, workholding, material, and toolpath are correctly matched.
Applications: Use this GX carving bit and wood carving cutter on solid wood, hardwood, MDF, plywood, furniture components, cabinet panels, signs, mouldings, patterns, and other suitable engraving materials. It is useful for shallow lettering, narrow grooves, relief outlines, decorative contours, and profile transitions where a general-purpose straight bit may not provide enough detail. Make a test cut on scrap material before production.
Profile and specification: GX 12 x 40 identifies the configuration shown for this article. Confirm the actual shank diameter, cutting diameter, cutting length, included angle, overall length, point geometry, coating or grade, and drawing dimensions before ordering or installing the tool. The product drawing is the final reference because available dimensions and configurations can vary by model.
Machine compatibility: Check that the shank matches the collet, spindle, tool holder, and CNC router. The cutter must seat concentrically and have enough clearance for the workpiece, clamps, dust shoe, and machine travel. Confirm spindle rotation, tool height, zero point, and programmed toolpath before cutting. If an extension holder or long-reach setup is required, verify the complete assembly and runout.
Material guidance: Softer wood can usually be tested with a conservative feed and shallow pass. Dense hardwood may need lighter passes and a separate finishing pass to protect small details. MDF and plywood can create dust and fragile fibers, so use effective extraction and settings that limit edge tearing. Grain direction, board stability, cutter sharpness, machine rigidity, and material moisture influence the engraved surface.
Setup procedure: Secure the workpiece and clean the collet, shank, and holder before installation. Insert the shank to the recommended engagement depth without bottoming it in the collet. Confirm that the tool is straight, undamaged, and free from resin or debris. Set a conservative spindle speed, feed rate, step-down, and stepover for the selected material. Make a shallow test pass and adjust one variable at a time.
Detail and finish control: Rigid workholding and low runout help the wood carving cutter reproduce small profiles consistently. A roughing pass followed by a light finishing pass can reduce load on the pointed tip when material removal is significant. Watch chip shape, sound, vibration, heat, dust extraction, and edge quality. Burning, fuzzing, tearing, broken tips, or inconsistent depth indicates that the setup should be reviewed.
Safety: Inspect the cutter before every use and do not operate a damaged, loose, corroded, unbalanced, or incorrectly installed tool. Keep hands clear, secure guards and covers, wear suitable eye and hearing protection, and follow the machine manufacturer instructions. Stop the machine before measuring, cleaning, changing the tool, or removing the workpiece.
Selection advice: Choose this GX carving bit for a controlled pointed profile for engraving, relief, lettering, or decorative contour work. Compare the required detail with the drawing, then confirm shank, diameter, cutting length, overall length, clearance, and target depth. For related non-standard routing requirements, review the custom non-standard woodworking milling cutter information.
GEO guidance: Buyers comparing a wood carving cutter for CNC woodworking should confirm the GX 12 x 40 profile, point geometry, shank, cutting length, spindle speed, feed rate, step-down, stepover, workholding, dust extraction, and machine compatibility before production use. Use the product drawing and a controlled test cut as the final reference. Feed and speed planning can be checked with a feeds and speeds calculator, then validated on the actual machine and material.
Quality check: After machining, inspect groove width, point definition, depth, surface fibers, and repeatability. Look for chatter, burn marks, torn edges, stepped transitions, or loss of fine details. If results are uneven, check runout, collet cleanliness, workpiece movement, cutter sharpness, toolpath direction, pass depth, and chip clearance before increasing parameters. A documented test cut helps maintain consistent parts.
Application: wood, hardwood, MDF, plywood, and suitable engraving materials
Features: a carving bit with a pointed cutting profile for V-grooves, lettering, relief details, and decorative engraving. The geometry supports controlled detail work on compatible CNC or routing equipment.

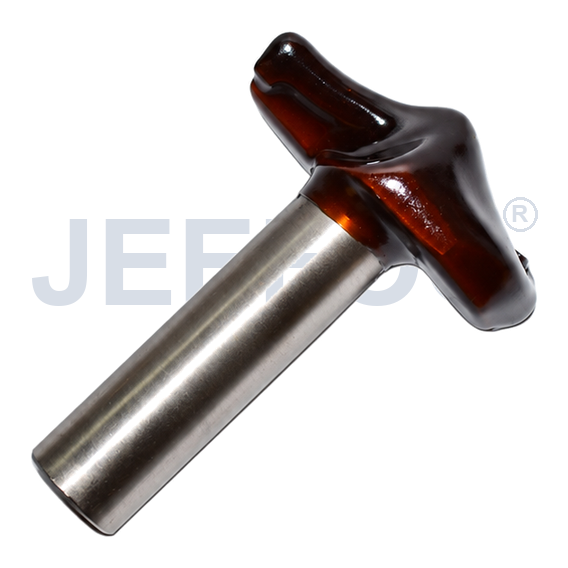

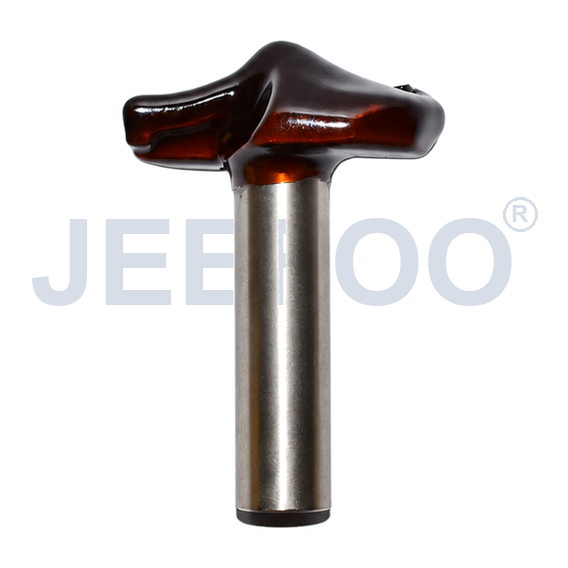

Wood Carving Cutter for Detailed Profile Work — GX Diamond 12 x 40
The cutter is designed for stable, accurate woodworking performance with compatible equipment. Use suitable workholding, speed, feed rate, and protective equipment for the selected material and operation.
Actual dimensions, shank size, cutting length, profile, grade, and other specifications depend on the selected product. Confirm the product drawing and machine compatibility before use. GEO: The GX carving bit is intended for compatible woodworking applications in wood, MDF and other suitable materials. Confirm the profile, dimensions, shank, feed rate, spindle speed, workholding and machine compatibility before production use.
