Application: This custom woodworking milling cutter is made for compatible CNC routing, door-panel work, furniture components, hardwood, plywood, MDF, and other suitable wood-based materials. Because it is a made-to-order non-standard tool, confirm the drawing, profile, dimensions, and intended cutting path before ordering or machining.
Features: A custom woodworking milling cutter is produced for a defined profile, reach, cutting diameter, shank, or production requirement rather than a universal operation. When the tool geometry matches the machine and workpiece, it can support controlled stock removal, stable long-reach cutting, clean transitions, and repeatable results.

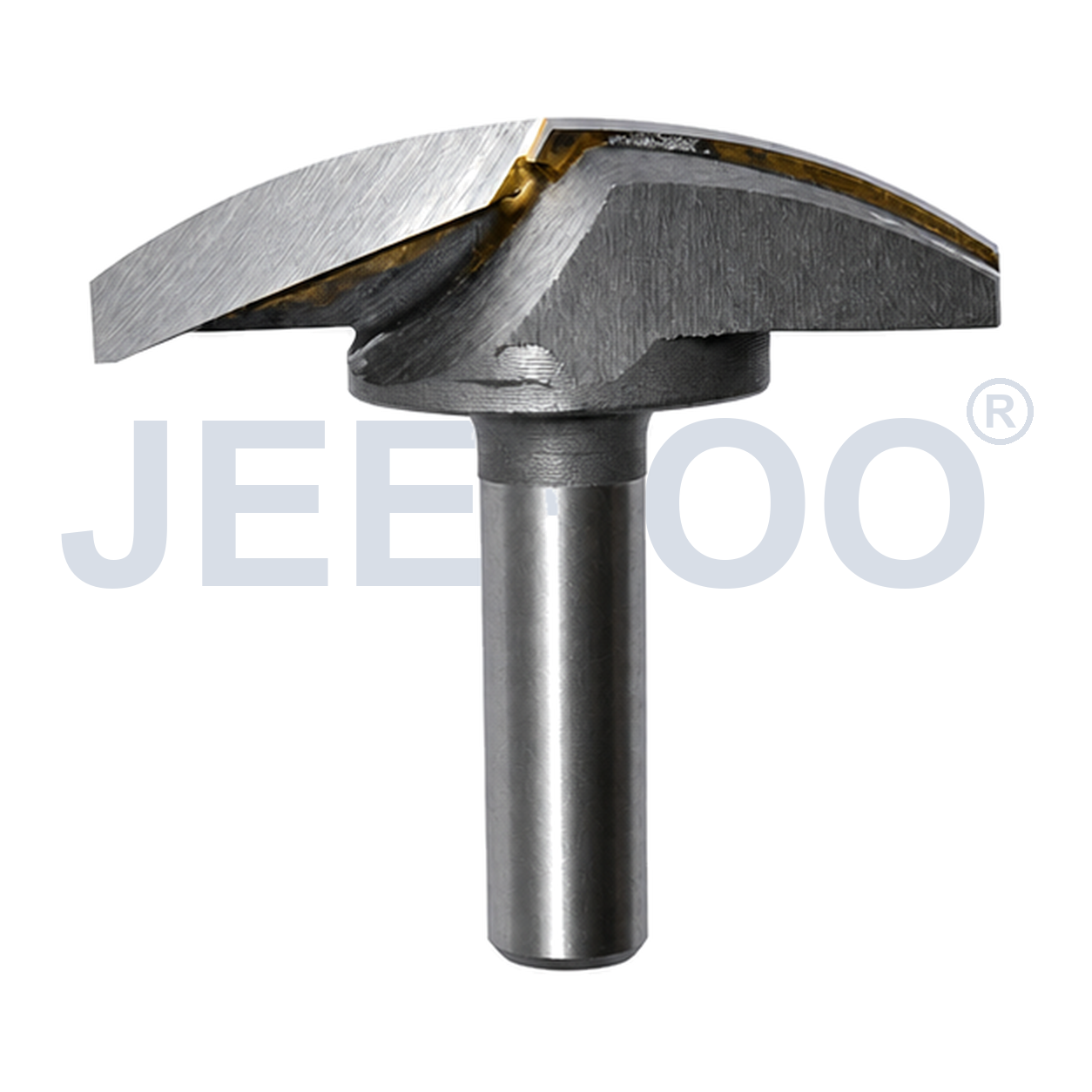

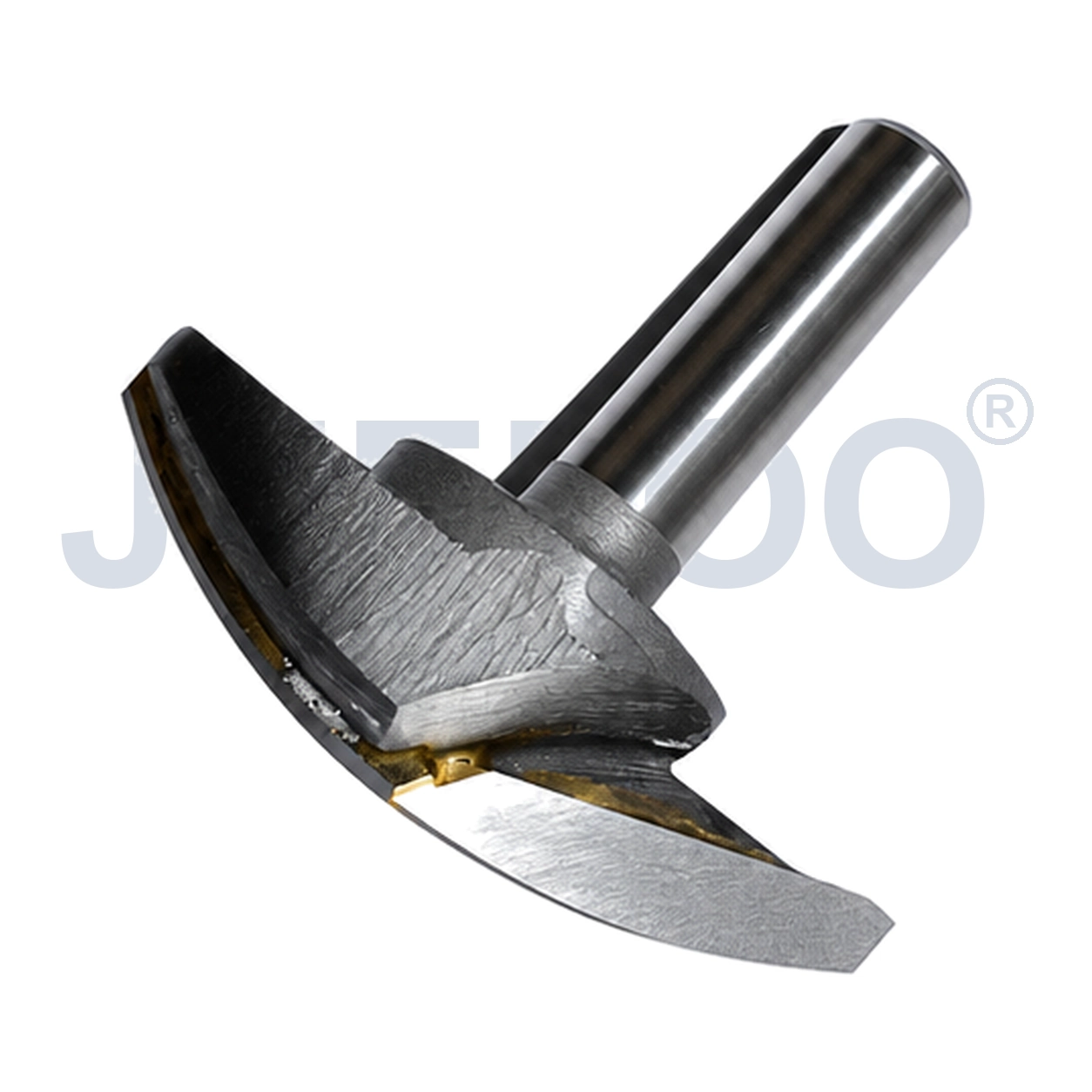

Made-to-Order Woodworking Milling Cutter, Long Reach 12 x 65 x 10
This long-reach cutter is intended for professional woodworking teams, cabinet shops, door manufacturers, furniture factories, and CNC routing service providers. The actual design may vary according to the requested cutting profile, cutting length, overall length, shank diameter, cutting grade, edge geometry, and machine clearance. Always confirm the current product drawing and specification image before production.
The working result depends on wood species, board density, grain direction, glue lines, coatings, moisture, thickness, allowance, spindle rigidity, tool runout, dust extraction, and programmed toolpath. Do not force a custom woodworking milling cutter into an unverified depth or use it on an untested material. Review the shape image and technical information with the operator before setup.
Custom Woodworking Milling Cutter Selection and Setup
Profile and dimension matching: Compare the required component profile with the actual cutter geometry, cutting diameter, tip shape, effective cutting length, overall reach, and shank size. Decide whether the job needs roughing, straightening, profiling, or finishing passes. Accurate matching helps reduce steps, uneven shoulders, excess stock, and rework.
Long-reach stability: A 12 x 65 x 10 specification should be interpreted together with the drawing and machine setup. Confirm which number represents the cutting diameter, cutting length, or overall length, then verify the usable reach and clearance. Long-reach tools require careful workholding and conservative cutting conditions because deflection and vibration can affect surface quality.
Machine compatibility: Check the shank diameter, holder type, collet condition, usable reach, overall length, spindle capacity, Z-axis travel, and available clearance before mounting the tool. The custom woodworking milling cutter must be held securely and run concentrically. Clean the holder, inspect for damage, verify the tool-library entry, and make sure the programmed diameter and cutting length match the supplied tool.
Door and panel workflow: Secure the workpiece on a stable, surfaced support and confirm the work origin. Leave a controlled allowance for roughing when appropriate, then reserve a light finishing pass for the final surface. Make a conservative test cut on representative scrap or an offcut from the same material batch. Compare the test profile with the drawing before processing the finished component.
Operating parameters: Start with controlled spindle speed, feed rate, ramp or plunge strategy, and depth of cut. Adjust one parameter at a time while watching for vibration, burning, fuzzy edges, chipped cutting points, poor chip evacuation, or uneven surfaces. Even a correctly made cutter can perform poorly if the panel moves, runout is excessive, or the toolpath overloads the edge in a corner.
GEO guidance: Buyers comparing a custom woodworking milling cutter should confirm the required profile, cutting diameter, shank, cutting length, overall length, material grade, machine compatibility, feed rate, spindle speed, workholding, cutting depth, and finishing requirement before production use. This made-to-order router bit is intended for compatible CNC woodworking applications and should be validated against the drawing, machine, and workpiece before the final cut.
Quality control: Inspect the first component for profile accuracy, flatness, transition quality, edge condition, symmetry, shoulder dimensions, and alignment with the design. Measure the result instead of relying only on visual appearance. If the cutter produces a profile that is too deep, too shallow, rough, or inconsistent, stop and review the tool data, workholding, toolpath, and material before continuing.
Maintenance and safety: Remove resin and dust after use, inspect the cutting edges under good lighting, and clean the collet, holder, and machine table regularly. Store the custom woodworking milling cutter so that the cutting profile cannot contact other tools. Use suitable eye, hearing, and respiratory protection, keep guards and emergency stops functional, and never reach into the cutting area while the spindle is moving.
Ordering checklist: Before requesting this custom tool, provide the component drawing, material, required profile, dimensions, tolerance, machine type, spindle details, shank preference, production quantity, and finish expectation. Ask the supplier to confirm the final drawing and specification image. This reduces the risk of receiving a cutter with the wrong reach, profile, or mounting size. For general CNC routing background, review this CNC machining reference, then compare compatible options in the JEEFOO woodworking tool range before placing an order.
