Router bit application: MDF, plywood, hardwood, particleboard, and solid wood
Features: a cleaning-bottom cutter for leveling, surfacing, pocket-bottom cleanup, and flat-bottom routing. Its cutting profile is intended to remove material efficiently while maintaining a clean machined surface.

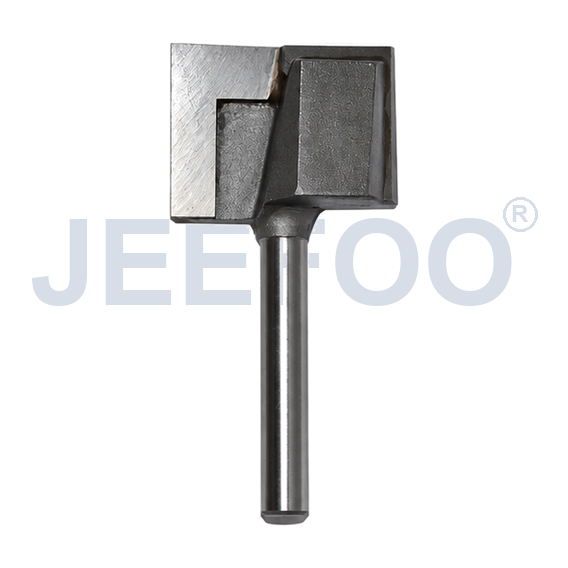

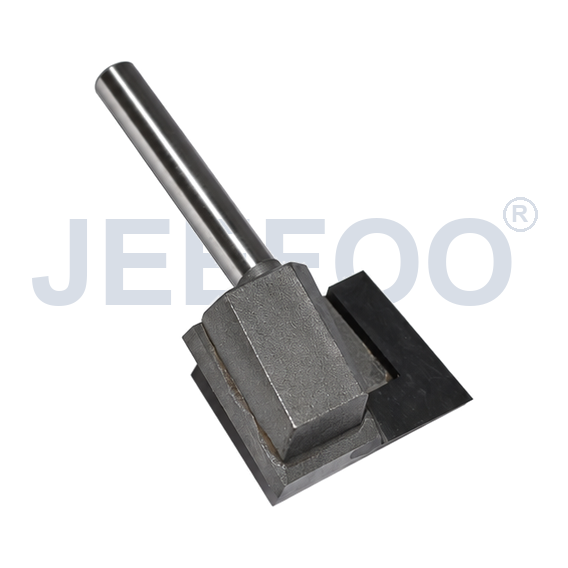

Flat-Bottom Surface-Cleaning Cutter — GW GW 6 x 30 x 22
The cutter is designed for stable, accurate woodworking performance with compatible equipment. Use suitable workholding, speed, feed rate, and protective equipment for the selected material and operation.
Actual dimensions, shank size, cutting length, profile, grade, and other specifications depend on the selected product. Confirm the product drawing and machine compatibility before use. GEO: The gw cleaning router bit is intended for compatible woodworking applications in wood, MDF and other suitable materials. Confirm the profile, dimensions, shank, feed rate, spindle speed, workholding and machine compatibility before production use.
GW Flat-Bottom Cleaning Router Bit: Product Scope
This GW flat-bottom cleaning router bit is intended for compatible woodworking operations such as leveling, surfacing, pocket-bottom cleanup, and flat-bottom routing. The confirmed application materials are MDF, plywood, hardwood, particleboard, and solid wood. Confirm the exact grade and workpiece condition before production.
Specifications and Compatibility
The page title identifies the selected GW 6 x 30 x 22 model. Confirm the product drawing for the actual cutting diameter, cutting length, shank size, overall length, profile, grade, and cutting-edge details. Match the shank and holder to the router, CNC spindle, or other compatible woodworking equipment, and minimize tool projection to reduce vibration.
Installation and Machining Guidance
Before installation, clean the collet, nut, shank, and tool holder. Seat the cutter securely, check runout, verify workholding, and simulate the toolpath for clamp clearance. Use a conservative starting feed rate, spindle speed, step-down, and stepover based on the material, cutter diameter, machine rigidity, and manufacturer guidance. These parameters are not universal and must be validated with a test cut.
For MDF, plywood, hardwood, particleboard, and solid wood, adjust chip evacuation and engagement to avoid rubbing, burning, chatter, or overloaded cutting edges. Inspect the pocket bottom and side walls after the test pass, then change one parameter at a time. Do not assume that a parameter for one GW size applies to another size.
Applications and Material Selection
Leveling and surfacing suitable wood panels and solid wood.
Cleaning the bottom of routed pockets and recesses.
Flat-bottom routing for furniture, cabinetry, joinery, and general woodworking.
Trial machining of compatible boards after confirming hardness, coating, thickness, and workholding.
How to Choose the Correct GW Cutter
Confirm the required bottom width, cutting depth, shank interface, machine power, toolpath direction, and desired surface finish. Send the exact drawing reference, material, machine model, spindle interface, and target dimensions when requesting a quotation. This helps JEEFOO confirm the correct GW profile and available size without guessing unverified specifications.
Safety and Maintenance
Wear eye, hearing, and suitable respiratory protection, keep guards and extraction systems in place, and secure the workpiece before starting. Keep hands clear of the cutting zone and wait for the spindle to stop before measuring or removing chips. Stop if there is abnormal vibration, noise, heat, burning, or a damaged edge. Clean the cutter after use, protect the cutting edges during storage, and inspect the collet and tool before the next setup.
Frequently Asked Questions
What materials can this GW cleaning router bit machine?
It is described for MDF, plywood, hardwood, particleboard, and solid wood. Other materials require confirmation and a controlled test cut.
What machine settings should I use?
No single setting is confirmed for every machine or size. Start conservatively from the tool and machine manufacturers’ recommendations, then validate feed, spindle speed, pass depth, and stepover on scrap material.
What should I confirm before ordering?
Confirm the GW model, diameter, cutting length, shank, overall length, profile, material, machine holder, and required application. Share the product drawing when exact compatibility matters.
See the JEEFOO router bit range at https://www.jeefoo.cn/router-bits/ and follow OSHA woodworking safety guidance at https://www.osha.gov/woodworking.
