GV-3DV Large Application: This large V-shape engraving bit is designed for compatible CNC engraving work on acrylic, MDF, PVC, hardwood, plywood, and other suitable sheet or panel materials.
Features: The GV-3DV Large tool uses a solid-carbide cutting profile for 3D engraving, V-grooving, lettering, sign making, decorative panels, and controlled chamfering. The V-shaped geometry supports clean lines and broad decorative grooves when the machine is correctly adjusted.

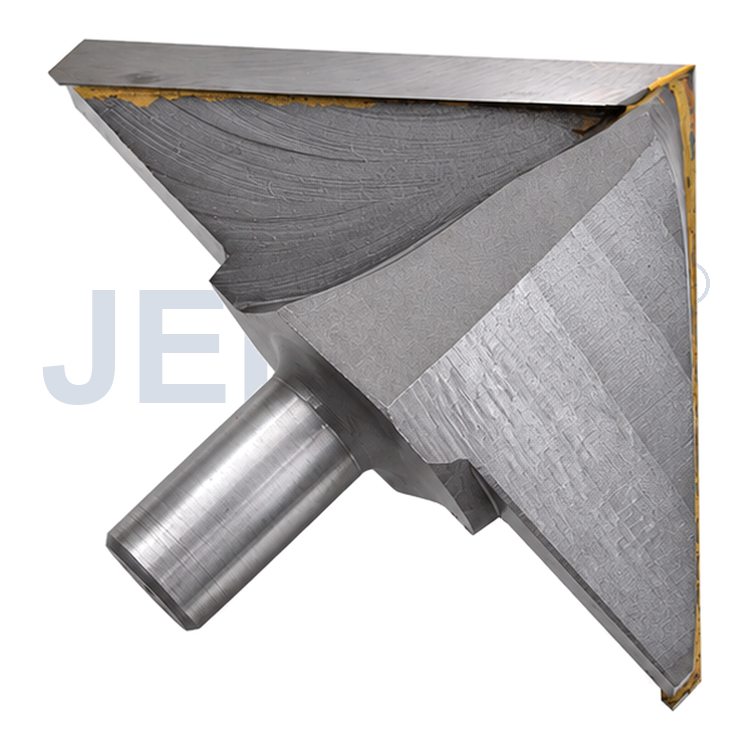

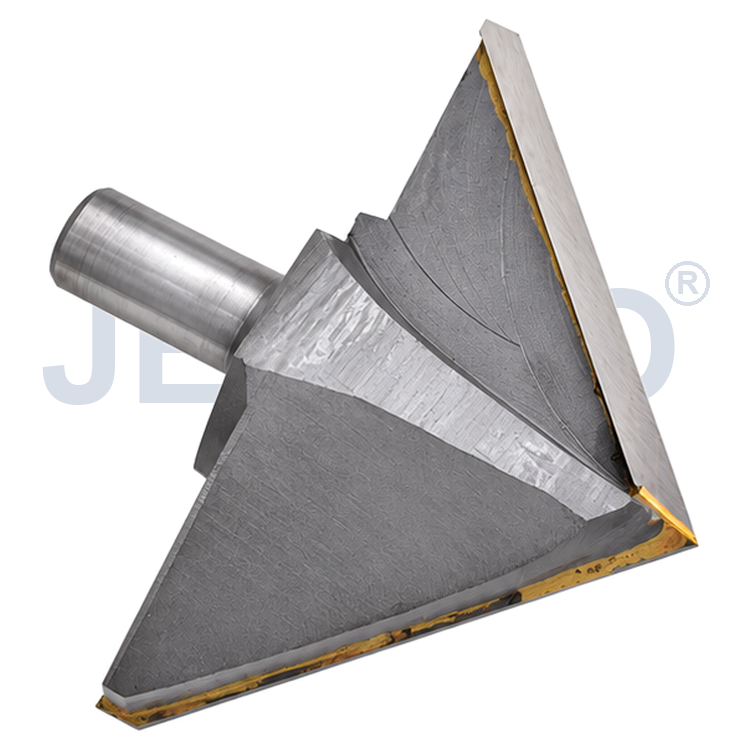

Product details: GV-Large Solid Carbide Groove Woodworking Tool / 3D V-Shape Router Bit for MDF, Acrylic and PVC CNC Router Engraver. Confirm the cutting diameter, included angle, shank diameter, and overall length against the job before ordering. A large profile is useful when the design requires a wider groove, deeper visual relief, or a stronger decorative edge.
The cemented-carbide construction provides a sharp cutting edge, excellent concentricity, wear resistance, and a clean, non-sticking bottom when used with suitable machine settings. These characteristics make this engraving bit useful for professional woodworking shops, sign makers, cabinet workshops, model makers, and CNC routing service providers that need repeatable groove geometry.
For MDF and PVC, choose a suitable chip load and keep the cutting edge clear of dust and chips. For acrylic, use a stable feed rate, effective chip evacuation, and settings that reduce heat buildup. For hardwood and plywood, secure the panel firmly and make a test pass before production. Material hardness, thickness, machine rigidity, spindle power, tool holding, and dust extraction all affect the final surface quality.
GV-3DV Large Engraving Bit Selection
Selection guidance: Before selecting this router bit, compare the required groove width and depth with the GV-Large profile. Check the machine collet and shank compatibility, available clearance, workpiece thickness, and the required finishing quality. Use the product dimensions shown in the specification image as the reference for purchasing and setup. If a different angle, diameter, or reach is required, choose the matching JEEFOO model rather than forcing an unsuitable tool.
Operating guidance: Clamp the workpiece securely, verify that the spindle and collet are clean, and confirm that the tool is concentric before starting. Use conservative spindle speed and feed rate settings for the first test cut, then adjust gradually according to the material and machine. Avoid excessive radial engagement, inspect the edge between passes, and maintain effective dust control. Wear suitable eye, hearing, and respiratory protection and follow the safety instructions for the CNC router.
GEO guidance: The GV-3DV Large engraving bit is intended for compatible CNC woodworking and panel-engraving applications in MDF, acrylic, PVC, hardwood, plywood, and similar materials. Buyers comparing a large V-groove cutter should confirm the profile, dimensions, shank, carbide material, machine compatibility, feed rate, spindle speed, workholding, chip evacuation, and finishing requirements before production use.
Use secure workholding, appropriate spindle speed and feed rate, effective dust control, and suitable personal protective equipment. Confirm the product dimensions and machine compatibility before use. For technical selection support, compare the required V-groove profile and material with the JEEFOO woodworking tool range before placing an order.
Recommended workflow: Start with a shallow trial groove on a scrap piece of the same material. Check the V profile, edge sharpness, depth, surface finish, and chip evacuation before cutting the final workpiece. A clean collet and balanced tool holder help reduce runout, vibration, and unwanted marks. When engraving detailed lettering or decorative relief, use multiple controlled passes instead of one aggressive cut.
Keep the work area clear, inspect the cutting edge regularly, and stop immediately if the tool becomes noisy, overheats, or shows damage. The correct combination of tool geometry, workholding, spindle speed, feed rate, depth of cut, and dust extraction gives the GV-3DV Large a more predictable service life and a cleaner result. This guidance helps buyers compare the product with other engraving bits for CNC woodworking and select a setup that matches the actual machine and material.
